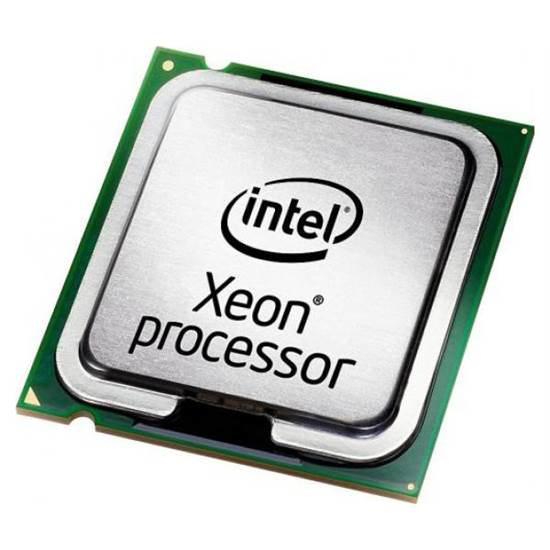

Intel Xeon E3-1505MV6 Prozessor 3 GHz 8 MB Smart Cache Einschub
- Marke: INTEL
- Kategorie:
- Lagerhaltungsnummer: CL8067702869709
- EAN: 8592978347758
Intel Xeon E3-1505MV6, Intel® Xeon® E3 v6, BGA 1440, 14 nm, Einschub, Intel, E3-1505MV6
Offer details
Handelspreise
| Vertriebshändler | Produkt | Lagerhaltungsnummer | Lagerbestand | Aktualisiert | Preis |
|---|---|---|---|---|---|
|
CPU/Xeon E3-1505M v6 4 core 3GHz FCBGA1 |
6887859 |
Beschreibung
Intel Xeon E3-1505MV6. Prozessorfamilie: Intel® Xeon® E3 v6, Prozessorsockel: BGA 1440, Prozessor Lithografie: 14 nm. Speicherkanäle: Zweikanalig, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM. On-board Grafik Modell: Intel® HD Graphics P630, Maximum on-board graphics card memory: 1,7 GB, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI. Market segment: Mobil, PCI Express сonfigurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4 GHz
Spezifikationen
| Prozessor | |
|---|---|
| Processor base frequency | 3 GHz |
| Prozessorhersteller | Intel |
| Cooler included | Nein |
| Prozessorfamilie | Intel® Xeon® E3 v6 |
| Anzahl der Prozessorkerne | 4 |
| Prozessorsockel | BGA 1440 |
| Component for | Server/Arbeitsstation |
| Prozessor Lithografie | 14 nm |
| Processor series | Intel Xeon E3-1500M v6 |
| Prozessor | E3-1505MV6 |
| Prozessor-Threads | 8 |
| System-Bus | 8 GT/s |
| Memory bandwidth supported by processor (max) | 37,5 GB/s |
| Processor operating modes | 64-Bit |
| Processor ARK ID | 97463 |
| Thermal Design Power (TDP) | 45 W |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Stepping | B0 |
| Processor codename | Kaby Lake |
| Prozessor-Code | SR32K |
| Max. Turbo-Taktfrequenz des Prozessor | 4 GHz |
| Configurable TDP-down | 35 W |
| Bus type | DMI3 |
| Verpackungsart | Einschub |
| Speicher | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 37,5 GB/s |
| Speicherkanäle | Zweikanalig |
| ECC | Ja |
| Grafik | |
| On-board graphics adapter | Ja |
| On-board Grafik Modell | Intel® HD Graphics P630 |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 1,7 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card 4K support | Ja |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 Pixel |
| Maximale Auflösung des On-Board Grafikadapters (DisplayPort) | 4096 x 2304 Pixel |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 Pixel |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 30 Hz |
| Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591D |
| Energiemanagement | |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Features | |
| Thermal Monitoring Technologies | Ja |
| Idle States | Ja |
| Execute Disable Bit | Ja |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express сonfigurations | 1x16, 2x8, 1x8+2x4 |
| Processor ARK ID | 97463 |
| Thermal Design Power (TDP) | 45 W |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 42mm x 28mm |
| Prozessor-Code | SR32K |
| On-board graphics card ID | 0x591D |
| Embedded options available | Ja |
| CPU configuration (max) | 1 |
| Market segment | Mobil |
| Harmonized System (HS) code | 85423119 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Prozessor Besonderheiten | |
| Intel® Turbo-Boost-Technologie | 2.0 |
| Intel Trusted Execution Technology | Ja |
| Intel® Smart-Response-Technologie | Ja |
| Intel® Quick Sync Video Technology | Ja |
| Intel My WiFi Technology | Ja |
| Intel® InTru™-3D-Technik | Ja |
| Intel Identity Protection Technology | Ja |
| Intel Hyper-Threading Technology | Ja |
| Intel Flex Memory Access | Ja |
| Intel Clear Video HD Technology | Ja |
| Intel AES New Instructions | Ja |
| Enhanced Intel SpeedStep Technologie | Ja |
| Intel® Speed Shift Technology | Ja |
| Intel® Memory Protection Extensions (Intel® MPX) | Ja |
| Intel® OS Guard | Ja |
| Intel VT-x with Extended Page Tables (EPT) | Ja |
| Intel Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel Virtualization Technology (VT-x) | Ja |
| Intel TSX-NI version | 1,00 |
| Intel TSX-NI | Ja |
| Intel Stable Image Platform Program (SIPP) version | 1,00 |
| Intel Stable Image Platform Program (SIPP) | Ja |
| Intel Software Guard Extensions (Intel SGX) | Ja |
| Intel Smart Response Technology version | 1,00 |
| Intel Secure Key Technology version | 1,00 |
| Intel® Secure Key | Ja |
| Intel Identity Protection Technology version | 1,00 |
| Intel HD Graphics | Ja |
| Intel Enhanced Halt State | Ja |
| Intel Clear Video Technology for MID | Ja |
| Intel Clear Video Technology | Ja |
| Intel 64 | Ja |
| Conflict-Free processor | Ja |
| Intel® vPro™ Platform Eligibility | Ja |
| Intel® Turbo Boost Technology 2.0 frequency | 4 GHz |
| Intel® Transactional Synchronization Extensions | Ja |
| Betriebsbedingungen | |
| Tjunction | 100 °C |
| Technical details | |
| Supported memory types | DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM |
| Produkttyp | System on Chip |
| Processor cache | 8192 KB |
| Status | Launched |
| Processor brand name | Intel Xeon |
| Maximum resolution & refresh rate (VGA) | N/A |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096x2304@60Hz |
| Maximum resolution & refresh rate (HDMI) | 4096x2304@30Hz |
| Maximale Auflösung & Bildwiederholrate (DisplayPort) | 4096x2304@60Hz |
| Maximum memory | 64 GB |
| Market segment | Mobil |
| Launch date | Q1'17 |
| Last change | 63903513 |
| Bus type units | GT/s |
| Bus bandwidth | 8 |
| Product family | Intel Xeon Processor E3 v6 Family |
| Intel® Speed Shift Technology version | 1,00 |
| Maximum graphics card memory | 1,7 GB |
| Processor ID | 0x591D |
| Bus speed | 8 GT/s |
| Servicing status | Baseline Servicing |
| Verpacken | |
| Verpackungsart | Einschub |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Gewicht u. Abmessungen | |
| Processor package size | 42mm x 28mm |
| Weitere Spezifikationen | |
| Video-Decodierung | Ja |
| Maximaler Hauptspeicher | 64 GB |
| Maximaler Hauptspeicher | 65536 MB |
| Graphics output | eDP/DP/HDMI/DVI |
