Offer details
Handelspreise
| Vertriebshändler | Produkt | Lagerhaltungsnummer | Lagerbestand | Aktualisiert | Preis |
|---|---|---|---|---|---|
|

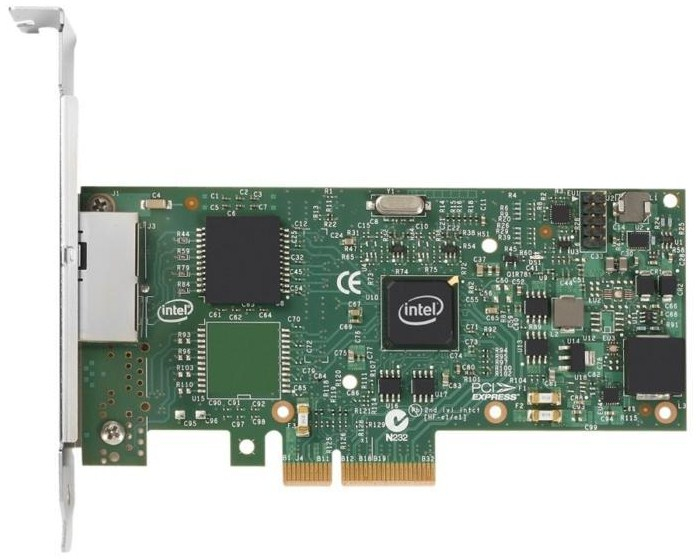

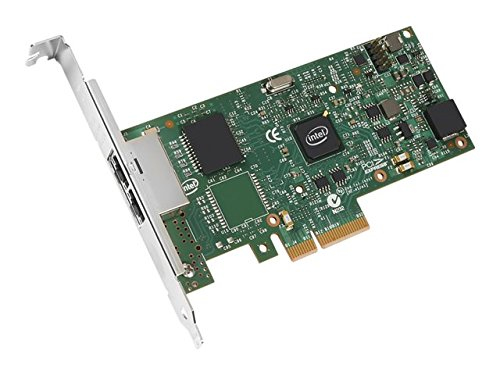

NIC/Ethernet Server Adapt I350-T2 Retail |
3201632 |
Beschreibung
Intel I350T2V2. Intern. Konnektivitätstechnologie: Kabelgebunden, Hostschnittstelle: PCI Express, Schnittstelle: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Spezifikationen
| Konnektivität | |
|---|---|
| Intern | Ja |
| Konnektivitätstechnologie | Kabelgebunden |
| Hostschnittstelle | PCI Express |
| Schnittstelle | Ethernet |
| Anzahl Ethernet LAN (RJ-45) Anschlüsse | 2 |
| PCI version | 2.1 |
| PCI Card form factor | Volle Höhe (Niedriges Profil) |
| Bandbreite | |
| Maximum data transfer rate | 1000 Mbit/s |
| Vollduplex | Ja |
| Netzwerk | |
| Chipsatz | Intel® I350 |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet/LAN | Ja |
| Ethernet LAN Datentransferraten | 1000 Mbit/s |
| Verkabelungstechnologie | 10/100/1000BaseT(X) |
| Netzstandard | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Unterstützte Netzwerkprotokolle | TCP, UDP, IP |
| Maximaler Betriebsabstand | 100 m |
| LAN controller | Intel® I350 |
| Vollduplex | Ja |
| Design | |
| Intern | Ja |
| Chipsatz | Intel® I350 |
| PCI Card form factor | Volle Höhe (Niedriges Profil) |
| Component for | Server |
| Product family | Intel Gigabit server adapter |
| Product series | Intel® I350 |
| Product codename | Powerville |
| Energiemanagement | |
| Energieverbrauch | 5 W |
| Systemanforderung | |
| Kompatible Betriebssysteme | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Betriebsbedingungen | |
| Temperaturbereich bei Betrieb | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Luftfeuchtigkeit (ausser Betrieb) | 35 - 90% |
| Gewicht u. Abmessungen | |
| Breite | 68,9 mm |
| Tiefe | 135,4 mm |
| Höhe | 120 mm |
| Protokolle | |
| Unterstützte Netzwerkprotokolle | TCP, UDP, IP |
| Verpackungsinhalt | |
| Benutzerhandbuch | Ja |
| Performance | |
| Ethernet adapter ARK ID | 84804 |
| Storage-over-ethernet | Ja |
| Speed & slot width | 5.0 GT/s, x4 Lane |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| iWARP/RDMA | Nein |
| Intelligent Offloads | Ja |
| Intel Virtual Machine Device Queues (VMDq) | Ja |
| Intel Flexible Port Partitioning | Ja |
| Intel Ethernet Power Management | Ja |
| Technical details | |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Thermal Design Power (TDP) | 4,4 W |
| Produkttyp | Network Interface Card |
| Prozessorfamilie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'14 |
| Last change | 63903513 |
| Verpacken | |
| Benutzerhandbuch | Ja |
| Weitere Spezifikationen | |
| Chipsatz | Intel® I350 |
| Benutzerhandbuch | Ja |
| Kompatible Betriebssysteme | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Kabeltyp | Cat 5 up to 100m |
| Ethernet adapter ARK ID | 84804 |
| Thermal Design Power (TDP) | 4,4 W |
| Storage-over-ethernet | Ja |
| Speed & slot width | 5.0 GT/s, x4 Lane |
| Produkttyp | Network Interface Card |
| Prozessorfamilie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Low halogen options available | Nein |
| iWARP/RDMA | Nein |
| Schnittstelle | PCIe v2.1 (5.0 GT/s) |
| Intelligent Offloads | Ja |
| Intel Virtualization Technologie for Connectivity (VT-c) | Ja |
| Intel Virtual Machine Device Queues (VMDq) | Ja |
| Intel Flexible Port Partitioning | Ja |
| Intel Ethernet Power Management | Ja |
| Storage Over Ethernet | iSCSI, NFS |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'14 |
| Last change | 63903513 |
| Product family | Intel Gigabit server adapter |
| Product series | Intel® I350 |
| Product codename | Powerville |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller Typ | Intel I350 |
| Cabling type | Cat 5 up to 100m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
