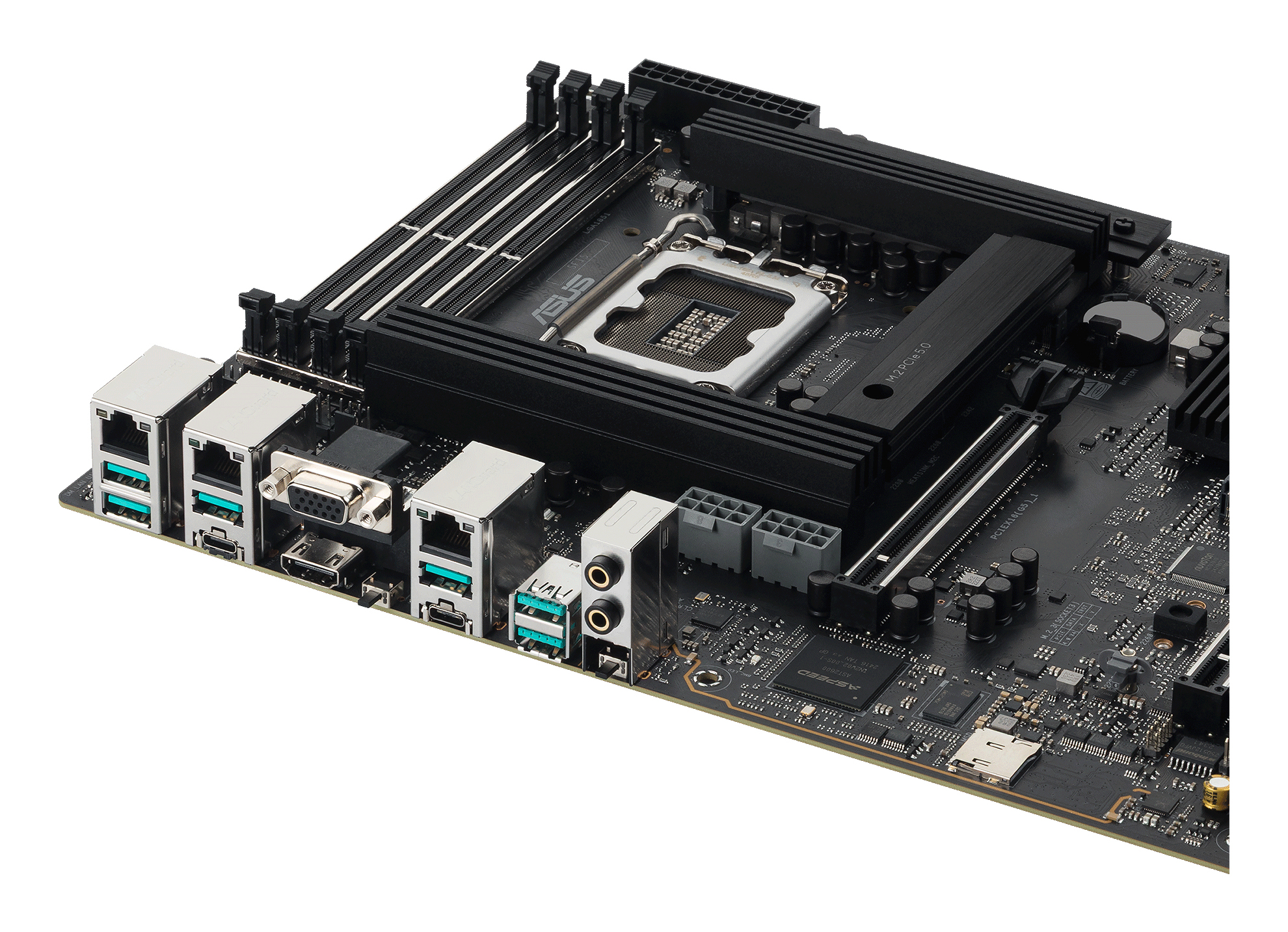

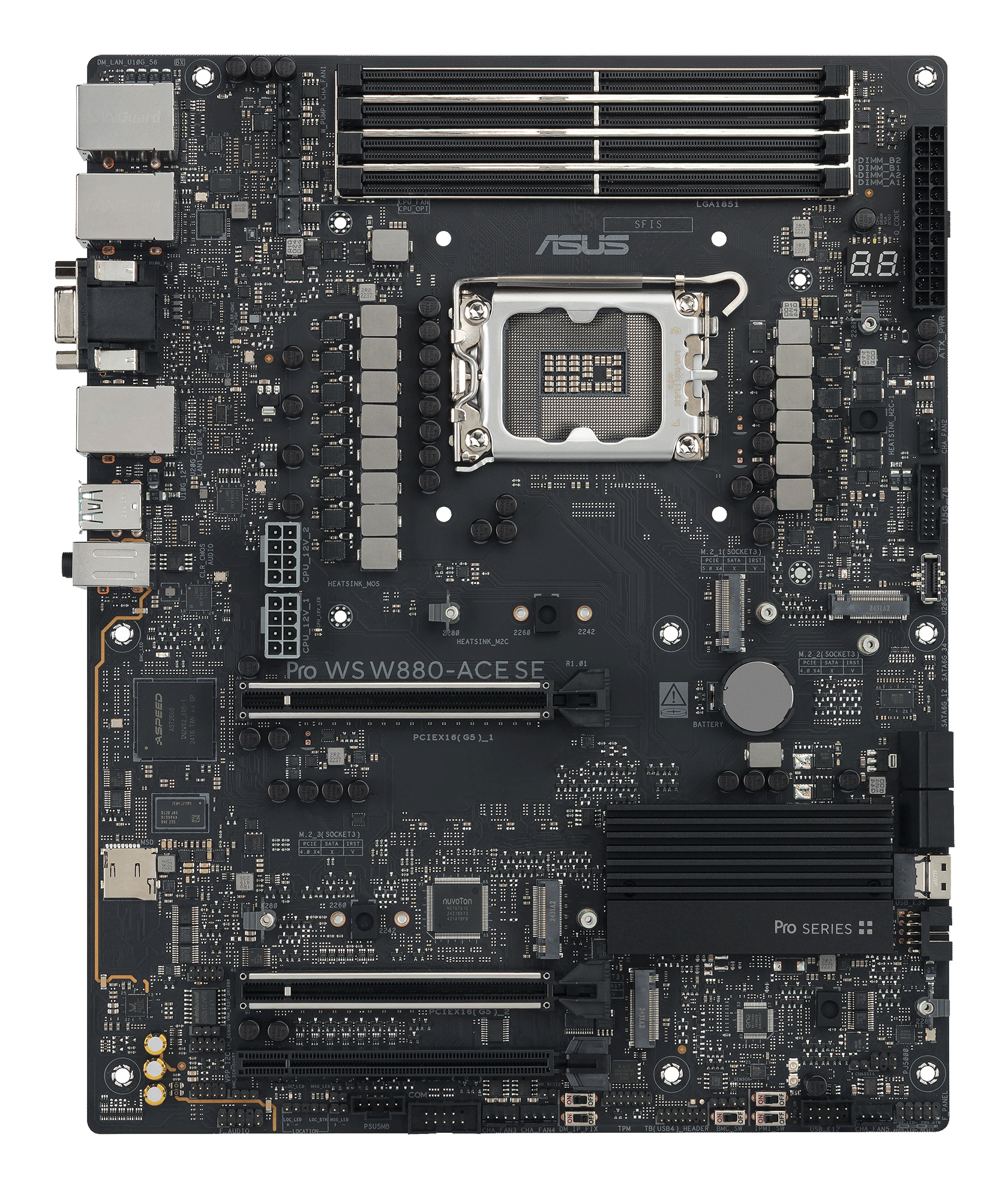

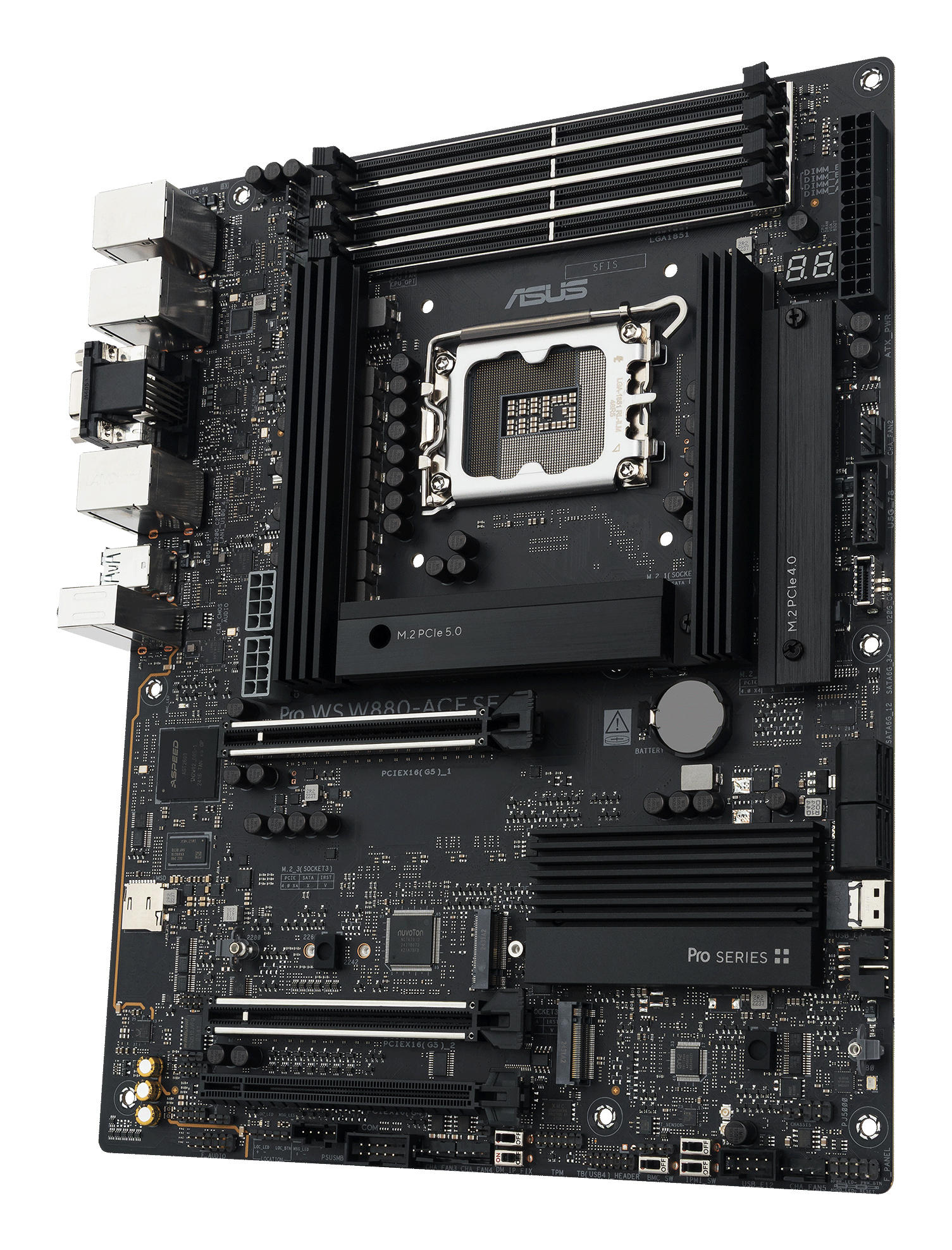

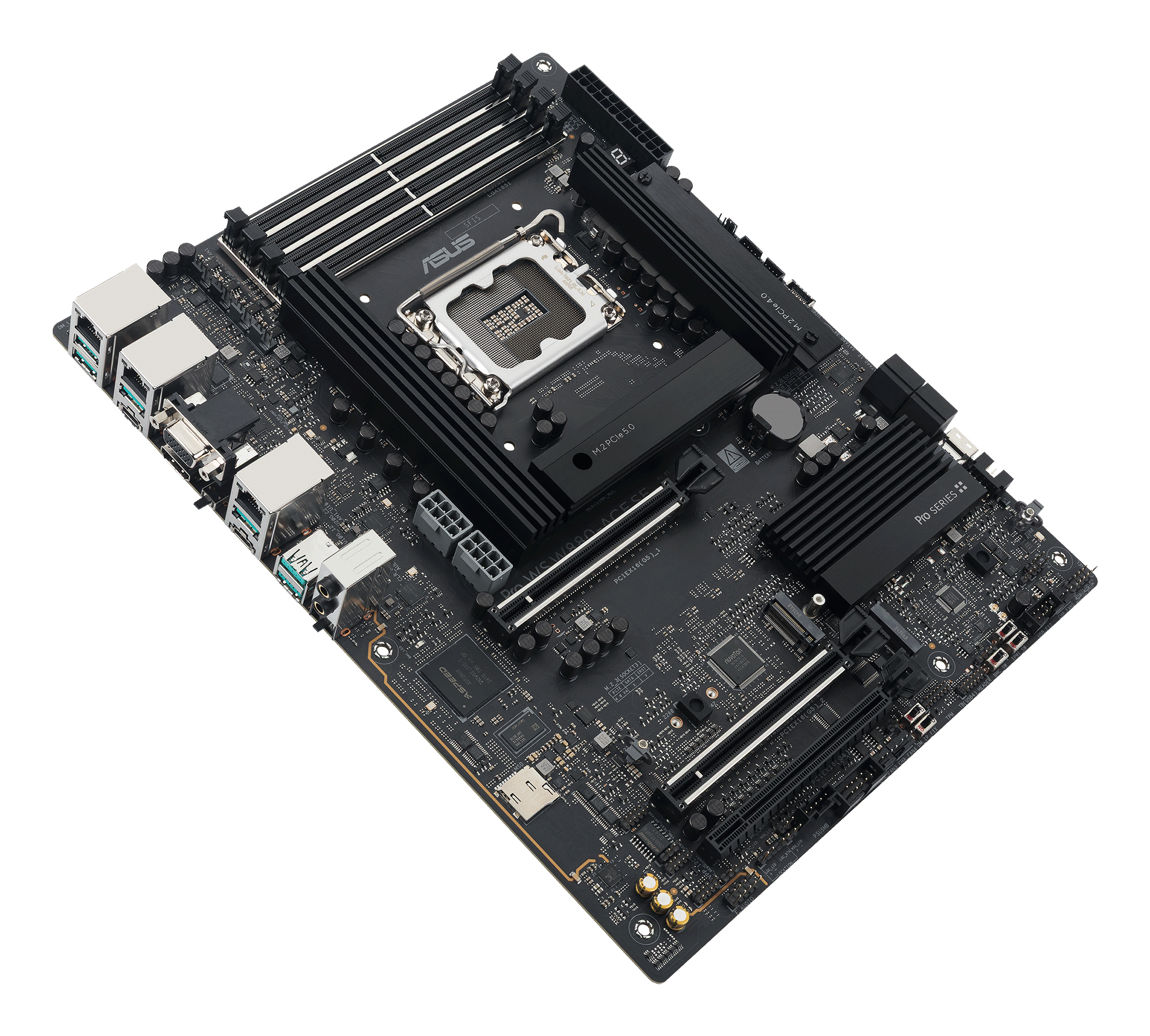

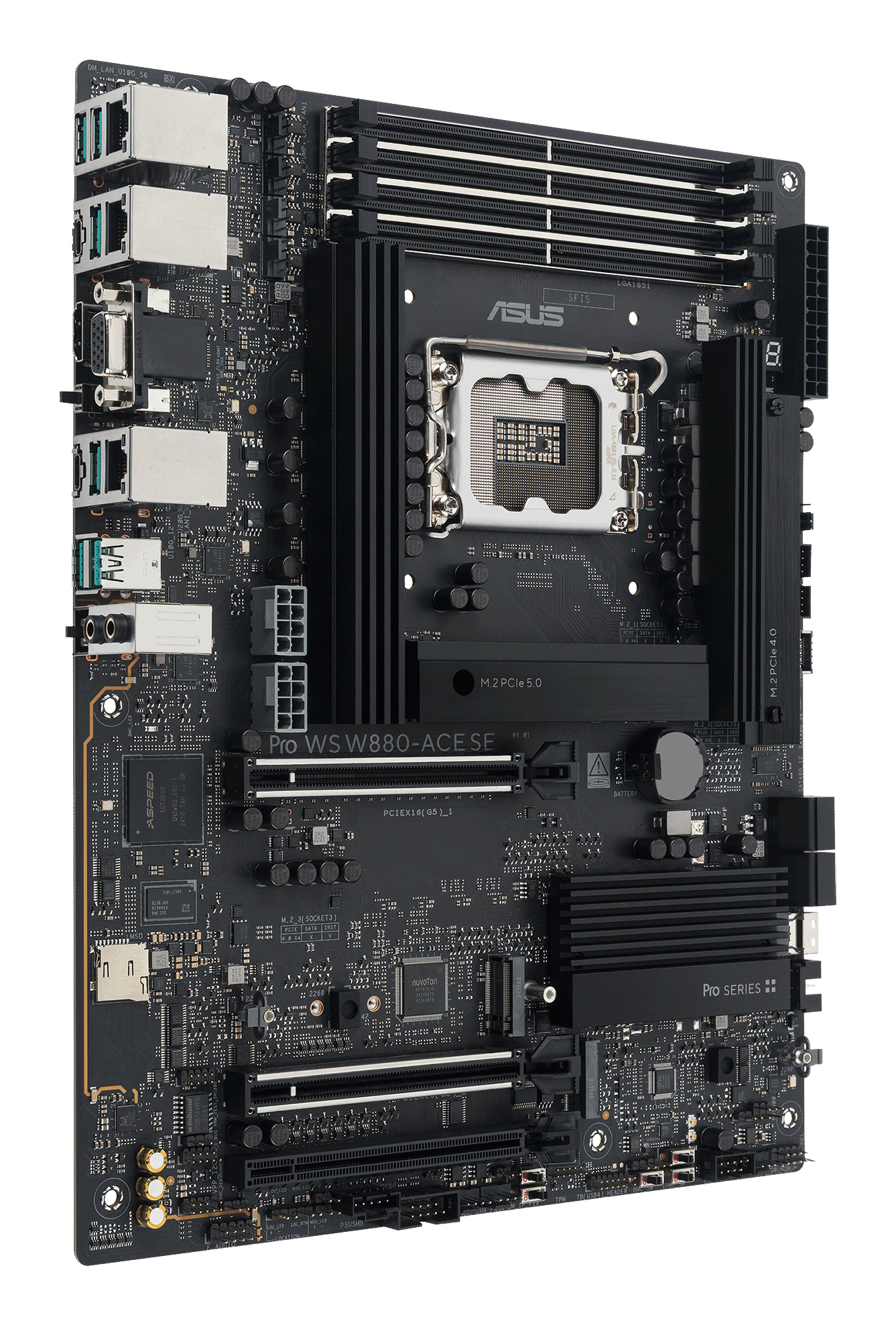

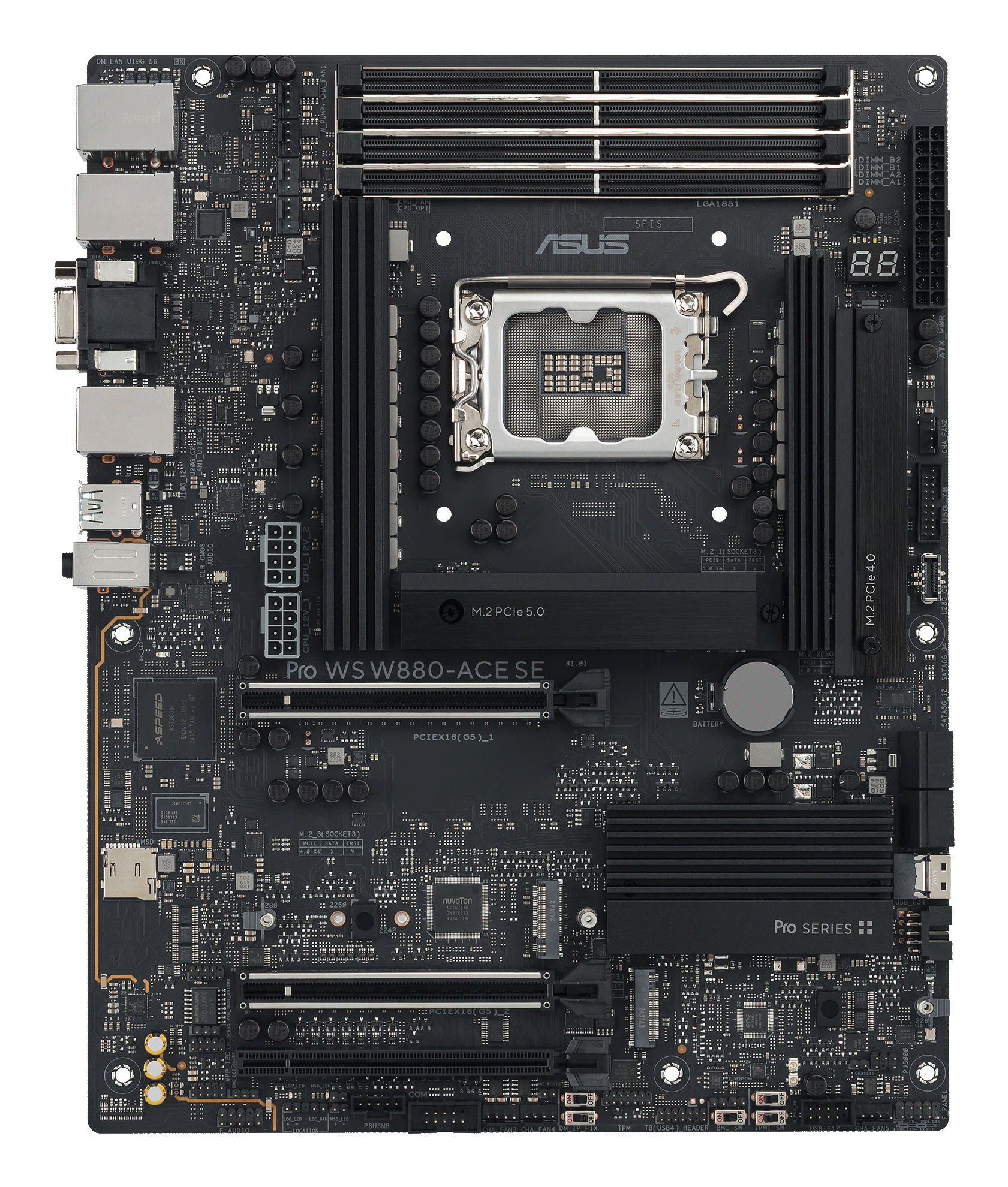

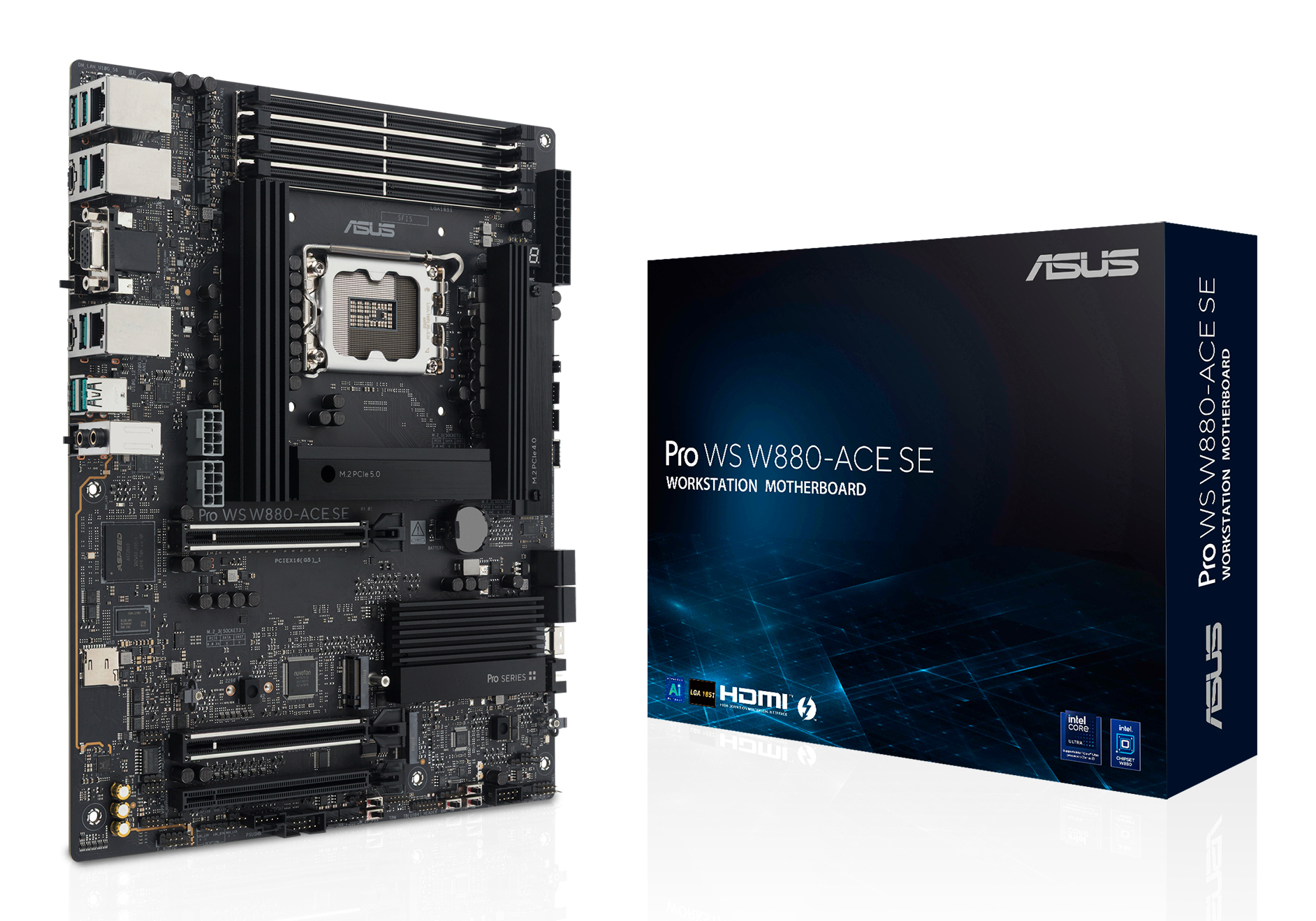

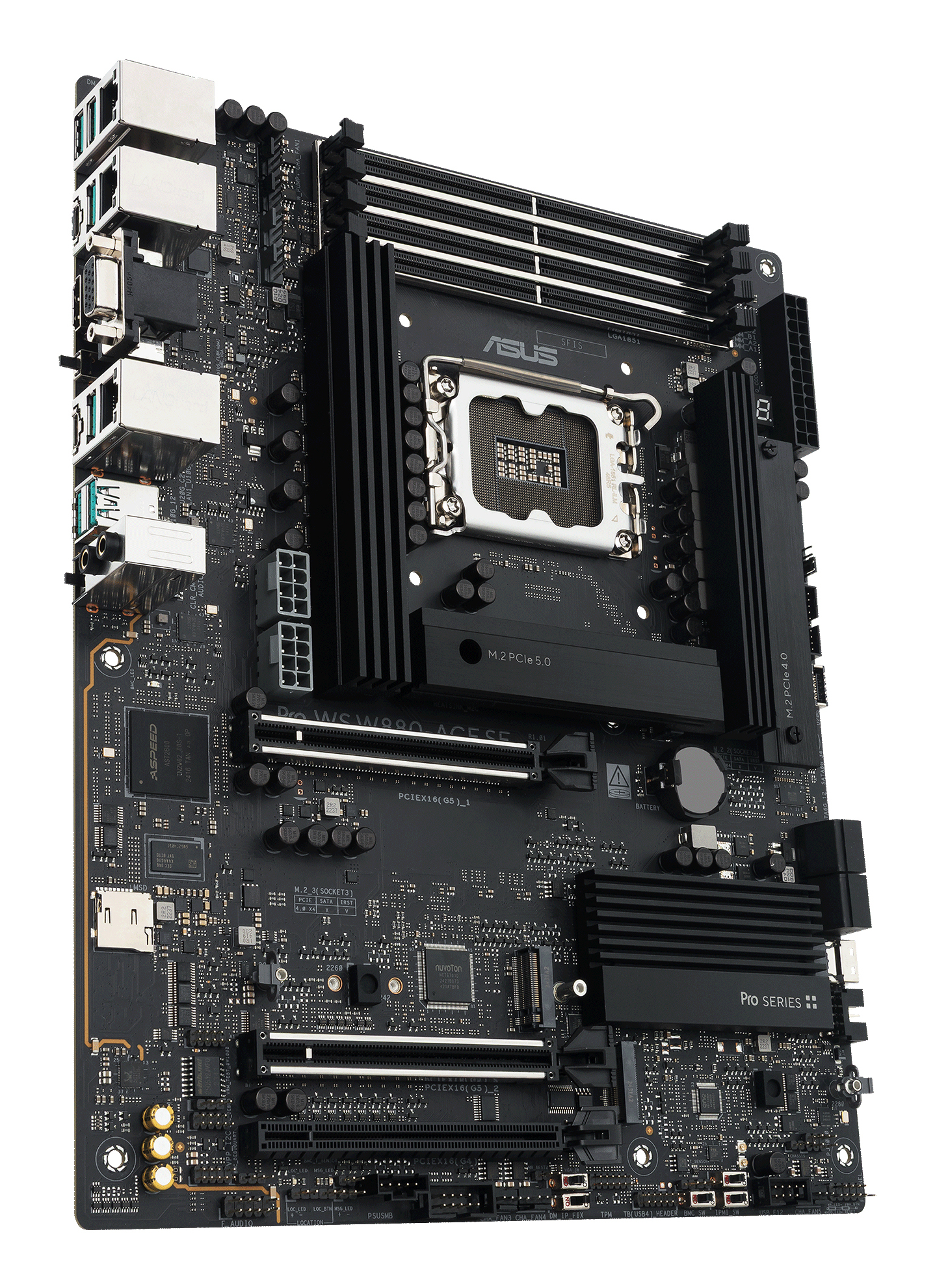

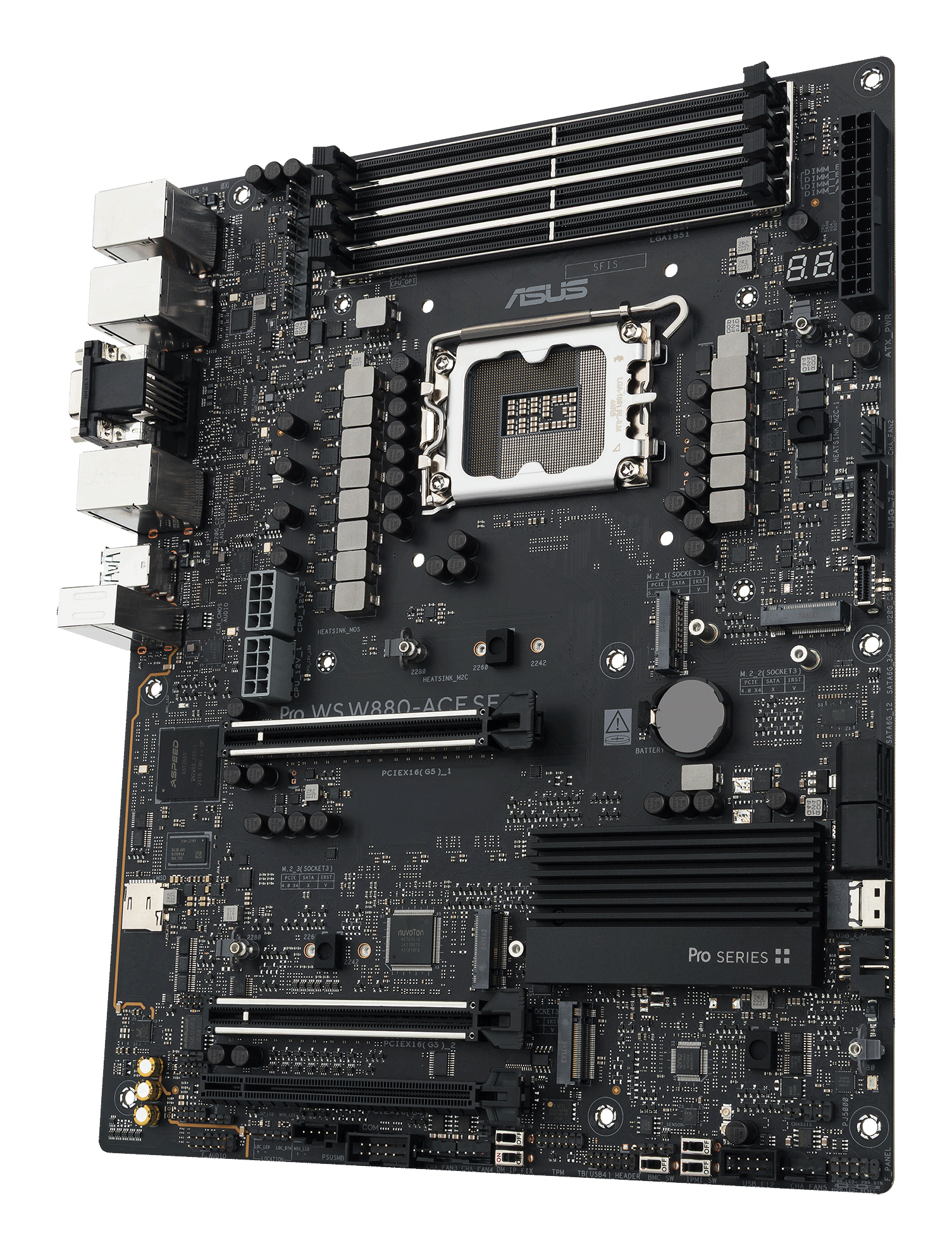

ASUS PRO WS W880-ACE SE LGA 1851 (Socket V1) ATX
- Marke: ASUS
- Kategorie:
- Lagerhaltungsnummer: 90MB1KV0-M0EAY0
- EAN: 4711387994221
ASUS PRO WS W880-ACE SE, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, DDR5-SDRAM, 256 GB
Offer details
Handelspreise
| Vertriebshändler | Produkt | Lagerhaltungsnummer | Lagerbestand | Aktualisiert | Preis |
|---|---|---|---|---|---|
|
PRO WS W880-ACE SE |
11807633 |
Beschreibung
ASUS PRO WS W880-ACE SE. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximaler Hauptspeicher: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID-Niveaus: 0, 1, 5, 10. Maximale Auflösung: 3840 x 2160 Pixel. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Spezifikationen
| Interne Anschlüsse | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Ja |
| 12V power connector | Ja |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Thunderbolt headers | 1 |
| Number of SATA III connectors | 4 |
| Zahl der COM Stecker | 1 |
| Zahl der Chassisventilatorstecker | 5 |
| Front Panel Audiostecker | Ja |
| EPS power connector (8-pin) | Ja |
| CPU Ventilatorstecker | Ja |
| Chassis Intrusion Stecker | Ja |
| ATX Energie Stecker (24-pin) | Ja |
| Integrated SAS ports | 1 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Performance | |
| Component for | Arbeitsstation |
| Motherboard chipset family | Intel |
| Motherboardformfaktor | ATX |
| Audio output channels | 7.1 Kanäle |
| Supported storage drive types | HDD & SSD |
| Supported processor sockets | Intel LGA1851 |
| RAID-Niveaus | 0, 1, 5, 10 |
| Maximale Anzahl Laufwerke pro Gehäuse | 4 |
| Cooling type | Passiv |
| unterstützte Windows Betriebssysteme | Windows 10 x64, Windows 11 |
| Prozessor | |
| Prozessorhersteller | Intel |
| Kompatible Prozessoren | Intel Core Ultra (Series 2) |
| Prozessorsockel | LGA 1851 (Socket V1) |
| Supported processor sockets | Intel LGA1851 |
| Speicher | |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Speicherkanäle | Zweikanalig |
| Maximaler Hauptspeicher | 256 GB |
| Number of memory slots | 4 |
| Unbuffered Speicher | Ja |
| Supported memory clock speed (max) | 9066 MHz |
| ECC сompatibility | Nicht-ECC |
| Maximum internal memory per slot | 64 GB |
| Laufwerk Controller | |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID-Niveaus | 0, 1, 5, 10 |
| Maximale Anzahl Laufwerke pro Gehäuse | 4 |
| Number of storage drives supported | 8 |
| RAID support | Ja |
| Grafik | |
| Parallelle Verarbeitung Technologie Unterstützung | Nicht unterstützt |
| Maximale Auflösung | 3840 x 2160 Pixel |

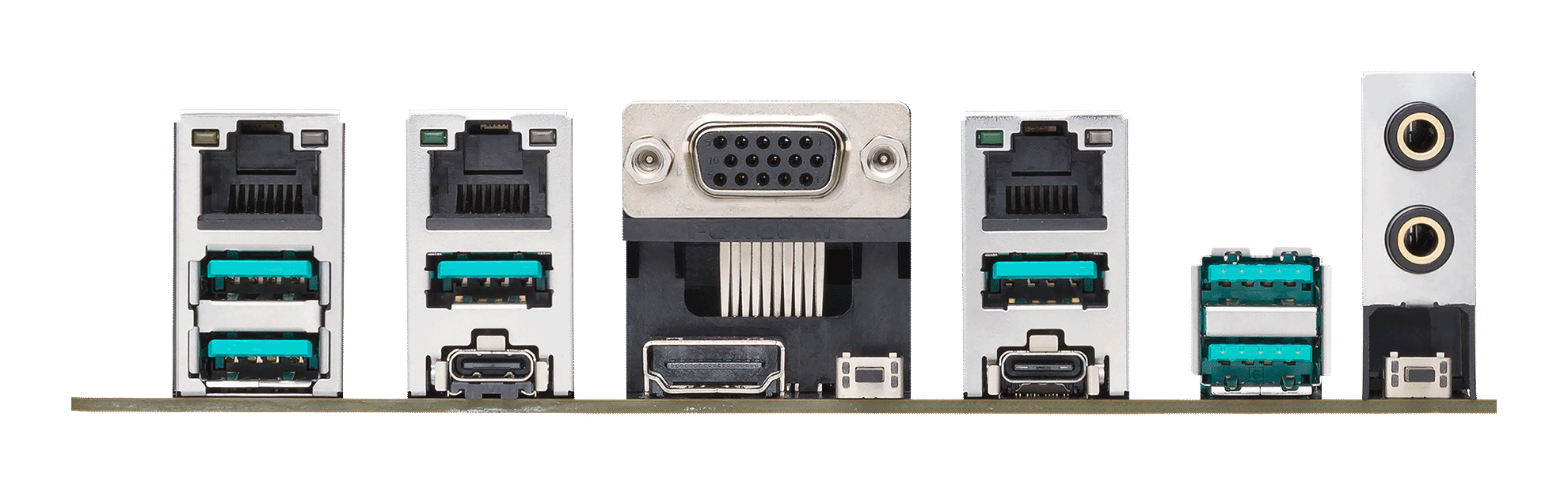

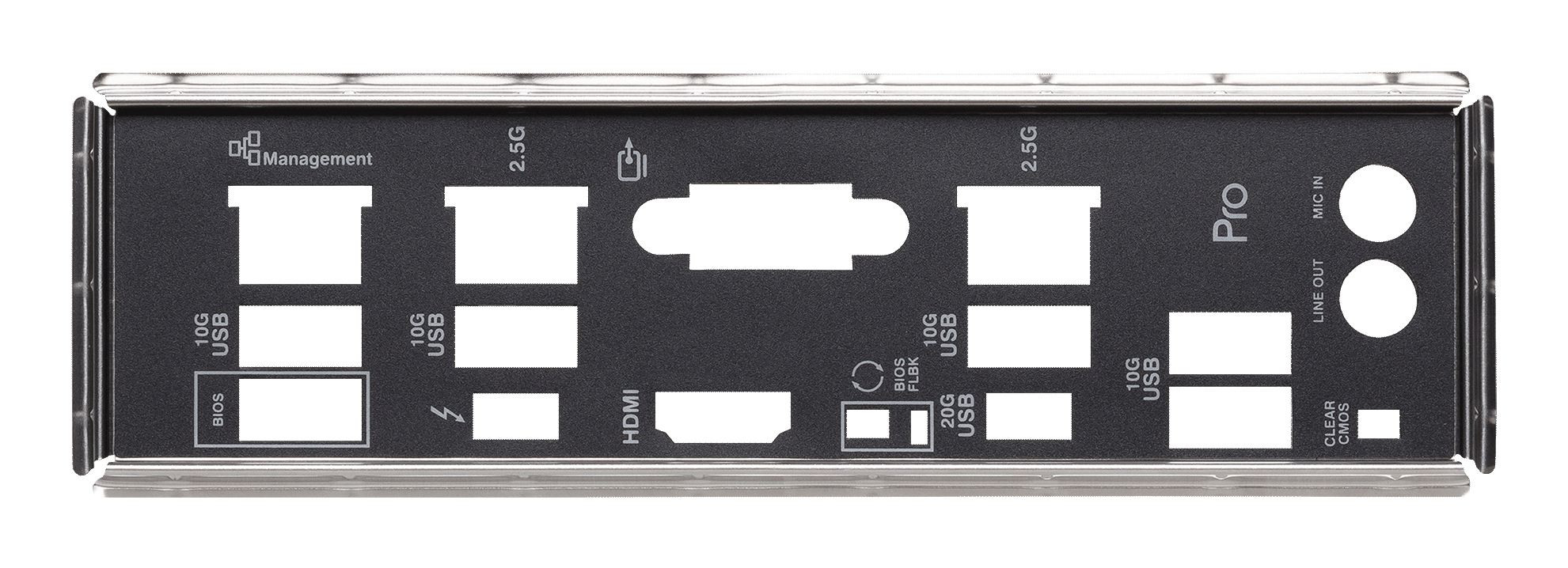

| Rückwandplatine Anschlüsse | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Anzahl der USB 2.0 Ports | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Anzahl Ethernet LAN (RJ-45) Anschlüsse | 3 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Thunderbolt ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI-Version | 2.1 |
| Anzahl HDMI Anschlüsse | 1 |
| Anzahl DVI-D Anschlüsse | 0 |
| DisplayPorts-Version | 2.1 |
| Line-Eingang | Ja |
| Netzwerk | |
| Ethernet/LAN | Ja |
| Wi-Fi | Nein |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Features | |
| Component for | Arbeitsstation |
| Motherboard chipset family | Intel |
| Motherboardformfaktor | ATX |
| Audio output channels | 7.1 Kanäle |
| Supported processor sockets | Intel LGA1851 |
| Energiequelle | ATX |
| Cooling type | Passiv |
| unterstützte Windows Betriebssysteme | Windows 10 x64, Windows 11 |
| Audio chip | Realtek ALC1220P |
| Produktfarbe | Grau |
| Erweiterungssteckplätze | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergrösse | 256 Mbit |
| Clear CMOS button | Ja |
| Energiemanagement | |
| Energiequelle | ATX |
| Gewicht u. Abmessungen | |
| Breite | 305 mm |
| Tiefe | 244 mm |
| Verpackungsinhalt | |
| Kabel eingeschlossen | SATA |
